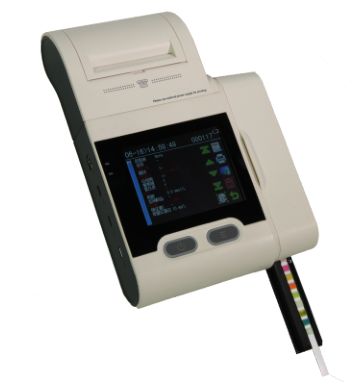

Portable Urine Analyzer YE-100P
Category:
Detailed
Determination principle: Reflectance and color analysis, calculate the concentration value of related items, fully digital acquisition and calculation, and output semi-quantitative results.
2. Test items: glucose (GLU), bilirubin (BIL), specific gravity (SG), pH, ketone (KET), occult blood (BLD), protein (PRO), urobilinogen (URO), nitrite (NIT), leukocyte (LEU), ascorbic acid (VC), creatinine (CRE), urine calcium (CA), microalbumin (MCA), A:C. Note: The specific items are determined by the matching urine test strip and can be freely combined, and the A:C format can be freely selected.
3. Test speed: 120 tests/hour (fast continuous), 60 tests/hour (single step, slow continuous)
4. Light source: LED cold light source, life ≥ 1500H
5. Report mode: liquid crystal display; Serial output; Built-in 57mm thermal printing, Chinese and English optional
6. Instrument configuration: 5 or more languages, which can meet the needs of customers in different countries.
7. Display: LCD TFT true color screen
8. Input method: full-screen capacitive touch;Can be connected to a barcode scanner
9. Report storage: Large capacity can store
10,000 test reports
10. Power-off protection: With power-off to automatically save all measurement data
11. External interface: Standard RS-232 serial port or Bluetooth transmission, which can be connected to the computer for data interaction or connected to the relevant LIS system
12. The test strip is placed arbitrarily, and there is no need to stop the test process while giving an alarm in time when there is an abnormality.
13. Repeatability and stability: coefficient of variation (CV, %)< 1.0
14. The difference with the labeled value of the corresponding reference solution is not more than one order of magnitude
15. Automatically correct the influence of uric pH on urine specific gravity test results, built-in temperature detection, and correct the results according to temperature.
16. Working voltage: wide power supply AC100-240V, 50Hz/60Hz
17. Fuse: ф5mm×20mm, T2AL250V
18. Instrument power consumption: Low power consumption is not more than 35VA
19. Safety classification: basic insulation, transient overvoltage class I., pollution level 2
20. Dimensions: 200mm× 137mm×52mm
21. Instrument weight: net weight: 600 grams
22. Full mold structure, stable and reliable, anti-corrosion, durable.
23. White appearance, simple and generous, beautiful shape, can give people a sense of intimacy.
